Climbing Technology

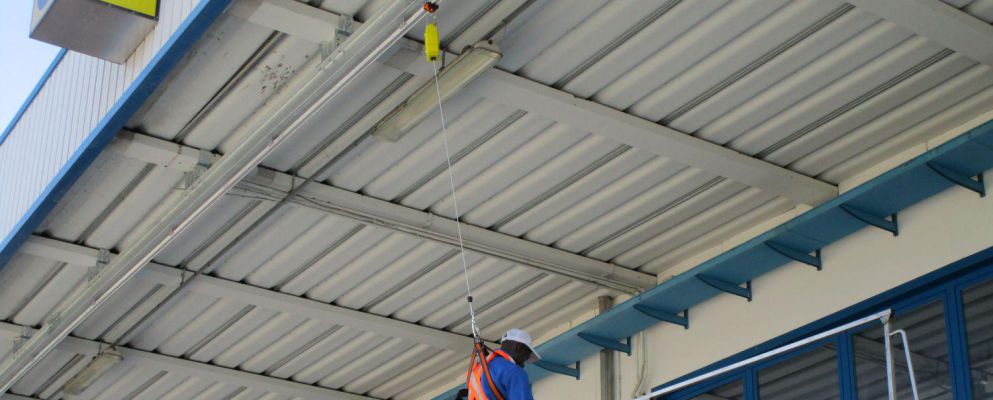

Fall arrester T-LITE

• EN 360
• Easy and quick to install
• For temporary or permanent installations
• Allows the operator to move in constant safety in both directions (vertical-horizontal) by eliminating the pendulum effect
• without the injured operator’s recovery function
• Maximum fall arrest distance: 1,8 m
• Maximum fall arrest force: 6 kN
• Maximum user weight: 140 kg
• Anchorage rating requirement: 19 kN
• Wire rope min breaking force: 17 kN​
• Weight:20 kg
• Ø 5 mm
• Maximum span: 12 m
• Maximum vertical range:
• 6m,  span       12 m
• 12m, span       6 m

Fall arrester with integrated winch SERIES119

for rescue maneuver

Series 119

• EN 360, EN 1496 – B
• Individually inspected
• Length: 15m
• Zink plated steel cable Ø 5mm
• Weight 9,2kg
• Possible to pull up or lower down somebody

Fall arrester T-LINE/XL

with the built-in recovery mechanism of the user, in case of a fall

• EN 360    EN 1496​
• Easy and quick to install
• For temporary or permanent installations
• Allows the operator to move in constant safety in both directions (vertical-horizontal) by eliminating the pendulum effect
• Maximum fall arrest distance: 1,8 m
• Maximum fall arrest force: 6 kN
• Maximum user weight: 140 kg
• Anchorage rating requirement: 19 kN
• Wire rope min breaking force: 17 kN​

T-Line​

• Weight:22,50 kg
• Ø 5 mm
• Maximum span: 12 m
• Maximum vertical range:
• 6m,  span       12 m
• 12m, span       6 m

 T-Line XL

• Weight:27,50 kg
• Ø 5 mm
• Maximum span: 24 m
• Maximum vertical range:
• 20m, span       24 m
• 18m, span       18 m

Fall arrester SERIES102/104

• EN 360
• 15mm Dyneema fiber lanyard
• Individually inspected
• The intelligent brake system recognizes the difference between fall and movement

Series 102

• Length: 2,5m
• Weight: 0,68kg

Series 104

• Length: 4m
• Weight: 0,93kg

Fall arrester SERIES105/107

• EN 360
• Integrated clutch braking system
• Carabiner with integrated swivel, 2 different types available
• Individually inspected

Series 105

• 15mm Dyneema fiber lanyard
• Length: 7m
• Weight: 3,1kg

Series 107

• Zink plated steel cable Ø 4mm
• Length: 7m
• Weight: 3,4kg

Fall arrester SERIES205

Series 205

• EN 360
• Integrated clutch braking system
• Carabiner with integrated swivel, 2 different types available
• Individually inspected
•  the workload has been increased to 136 kg
•  the casing and drum are made from composite material
• 15mm Dyneema fiber lanyard
• Length: 7m
• Weight: 3,25kg

Fall arrester SERIES110/115

• EN 360
• Built in handle for easy transportation
• Composite housing and drum
• Carabiner with integrated swivel, 2 different types available
• Individually inspected

Series 110

• Zink plated steel cable Ø 5mm
• Length: 10m
• Weight: 6,6kg

Series 115

• Zink plated steel cable Ø 5mm
• Length: 15m
• Weight: 7,1kg

Fall arrester SERIES 210/215

• EN 360
• workload: 136 kg
• Built in handle for easy transportation
• Composite housing and drum
• Carabiner with integrated swivel, 2 different types available
• Individually inspected

Series 210

• Zink plated steel cable Ø 5mm
• Length: 10m
• Weight: 6,9kg

Series 215

• Zink plated steel cable Ø 5mm
• Length: 15m
• Weight: 7,3kg

Fall arrester SERIES 129

with integrated descender

Series 129

• EN 366, EN 341
• Individually inspected
• Length: 15m
• Zink plated steel cable Ø 5mm
• Weight: 7,5kg
• Descender speed max. 2m/s
• Maximum loading 136kg

Fall arrester SERIES 600/700

• EN 360
• 15mm Dyneema fiber lanyard
• Individually inspected
• Many different combinations possible

Series 600

• Length: 1,5m
• Weight: 0,65kg

Series 700

• Length: 2m
• Weight: 0,67kg
